HRB Series Zero Purge Blower Reactivated Dryers
Deep dew point without giving the air back

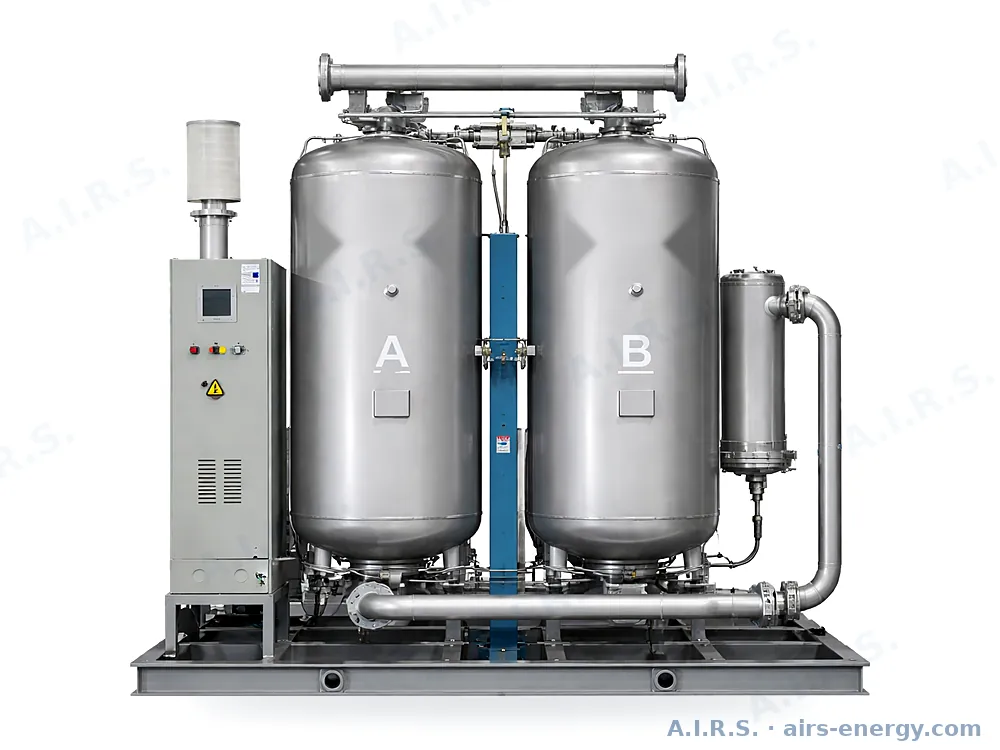

Blower reactivated twin-tower adsorption dryers from 13.5 to 210 Nm³/min. Regeneration is done with ambient air drawn by a blower and an electric heater, so none of the dried compressed air is purged to atmosphere. −20 and −40 °C standard, −70 °C available. On 100 Nm³/min a heatless dryer vents about 7 Nm³/min — roughly 38 kW of compressor power, continuously; the HRB vents none.

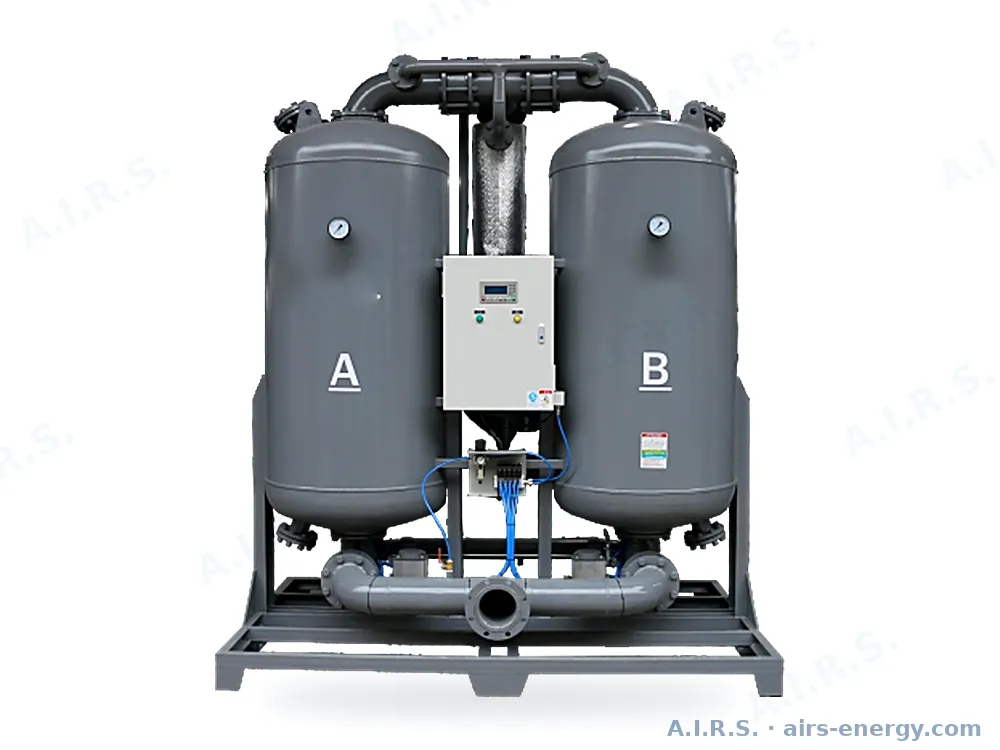

Models: HRB-ZW (water cooled) & HRB-ZA (air cooled) · 66 models · Compressed air dryers
- 0 % Compressed air purged
- −70 °C Dew point available
- 210 Nm³/min top capacity
- 66 Models, ZW and ZA
Key specifications
| Pressure dew point | −20 °C or −40 °C standard |
|---|
| Deeper dew point | −70 °C available on application |
|---|
| Purge air consumption | Nil |
|---|
| Working pressure | 7 – 10 bar g rated; 6 bar g confirmed |
|---|
| Maximum inlet air temperature | 38 °C (hard limit) |
|---|
| Pressure drop across dryer | 0.2 bar |
|---|
| Desiccant | Activated alumina |
|---|
| Regeneration | Ambient air, blower and electric heater |
|---|
| Control | Dew point energy-saving control, RS485 |
|---|
Why this range
- Zero compressed air purged — ambient air reactivates the off-line bed
- Blower and heater run intermittently, only during regeneration
- Water-cooled ZW frames for hot plant rooms; air-cooled ZA frames where there is no cooling water
- Dew point energy-saving control stretches the cycle to the real water load, RS485 output
- On most duty cycles it pays back against heatless inside two years
Models and technical data
HRB-ZW — water cooled, −40 °C
| Model | Nm³/min | scfm | Rated power kW | Air connection | Cooling water m³/h | L × W × H mm | kg |
|---|
| HRB-ZW100 | 13.5 | 518 | 12.1 | DN65 | 1.6 | 1955 × 1057 × 2346 | 750 |
| HRB-ZW120 | 17 | 653 | 16.7 | DN65 | 3 | 2098 × 1102 × 2511 | 1050 |
| HRB-ZW150 | 21.5 | 826 | 19.5 | DN65 | 3.2 | 2148 × 1125 × 2437 | 1150 |
| HRB-ZW180 | 25 | 960 | 22.8 | DN80 | 4 | 2199 × 1247 × 2474 | 1500 |
| HRB-ZW200 | 28.5 | 1095 | 28 | DN80 | 5 | 2179 × 1260 × 2740 | 1800 |
| HRB-ZW250 | 32 | 1229 | 36.5 | DN80 | 5.4 | 2412 × 1500 × 2761 | 1950 |
| HRB-ZW300 | 37 | 1421 | 40 | DN100 | 6 | 2655 × 1700 × 2839 | 1950 |
| HRB-ZW400 | 45 | 1728 | 46 | DN100 | 6.8 | 2570 × 1710 × 2897 | 2600 |
| HRB-ZW450 | 50 | 1920 | 46 | DN100 | 7.2 | 2740 × 1763 × 2874 | 2700 |
| HRB-ZW500 | 55 | 2112 | 57.5 | DN125 | 8.5 | 3123 × 1945 × 3123 | 3050 |
| HRB-ZW600 | 65 | 2496 | 63.5 | DN125 | 10 | 3063 × 1997 × 2908 | 3500 |
| HRB-ZW700 | 75 | 2880 | 77.5 | DN125 | 11 | 3100 × 2061 × 3066 | 3800 |
| HRB-ZW800 | 85 | 3264 | 77.5 | DN125 | 13.2 | 3100 × 2061 × 3066 | 3850 |
| HRB-ZW900 | 95 | 3648 | 77.5 | DN150 | 15 | 3250 × 2205 × 3078 | 4200 |
| HRB-ZW1000 | 110 | 4224 | 105.5 | DN150 | 17 | 3433 × 2431 × 3148 | 5100 |
| HRB-ZW1200 | 120 | 4609 | 105.5 | DN150 | 18 | 3433 × 2431 × 3348 | 5500 |
| HRB-ZW1400 | 145 | 5569 | 143 | DN200 | 22 | 3581 × 2820 × 3381 | 7600 |
| HRB-ZW1600 | 165 | 6337 | 154.5 | DN200 | 28 | 4363 × 2711 × 3436 | 9200 |
| HRB-ZW1800 | 185 | 7105 | 154.5 | DN200 | 30 | 4400 × 2802 × 3489 | 10500 |
| HRB-ZW2100 | 210 | 8065 | 176.5 | DN200 | 30 | 4600 × 2900 × 3500 | 13000 |
Rated power is the blower and heater installed rating, drawn intermittently.
HRB-ZW — water cooled, −20 °C
| Model | Nm³/min | scfm | Rated power kW | Air connection | Cooling water m³/h | L × W × H mm | kg |
|---|
| HRB-ZW100 | 13.5 | 518 | 12.1 | DN65 | 1.6 | 1955 × 1040 × 2346 | 980 |
| HRB-ZW120 | 17 | 653 | 16.7 | DN65 | 3 | 2098 × 1102 × 2311 | 1280 |
| HRB-ZW150 | 21.5 | 826 | 19.5 | DN65 | 3 | 2098 × 1102 × 2511 | 1500 |
| HRB-ZW180 | 25 | 960 | 19.5 | DN80 | 3.6 | 2148 × 1197 × 2437 | 1600 |
| HRB-ZW200 | 28.5 | 1095 | 22.8 | DN80 | 4.2 | 2293 × 1249 × 2500 | 1650 |
| HRB-ZW250 | 32 | 1229 | 28 | DN80 | 5 | 2179 × 1302 × 2766 | 1920 |
| HRB-ZW300 | 37 | 1421 | 36.5 | DN100 | 5.4 | 2412 × 1560 × 2792 | 1950 |
| HRB-ZW400 | 45 | 1728 | 36.5 | DN100 | 6 | 2478 × 1500 × 2822 | 2150 |
| HRB-ZW450 | 50 | 1920 | 36.5 | DN100 | 6 | 2478 × 1500 × 2822 | 2250 |
| HRB-ZW500 | 55 | 2112 | 57.5 | DN125 | 8 | 3030 × 1940 × 2958 | 2800 |
| HRB-ZW600 | 65 | 2496 | 57.5 | DN125 | 8.5 | 3030 × 1940 × 3158 | 3150 |
| HRB-ZW700 | 75 | 2880 | 57.5 | DN125 | 10 | 2918 × 1855 × 2888 | 3420 |
| HRB-ZW800 | 85 | 3264 | 63.5 | DN125 | 12.5 | 3030 × 1970 × 3046 | 3850 |
| HRB-ZW900 | 95 | 3648 | 77.5 | DN150 | 14 | 3306 × 2189 × 3078 | 4000 |
| HRB-ZW1000 | 110 | 4224 | 77.5 | DN150 | 16 | 3356 × 2252 × 3078 | 4300 |
| HRB-ZW1200 | 120 | 4609 | 77.5 | DN150 | 18 | 3570 × 2319 × 3128 | 5200 |
| HRB-ZW1400 | 145 | 5569 | 105.5 | DN200 | 20 | 3668 × 2548 × 3331 | 6800 |
| HRB-ZW1600 | 165 | 6337 | 143 | DN200 | 23 | 3591 × 2800 × 3381 | 8000 |
| HRB-ZW1800 | 185 | 7105 | 146.5 | DN200 | 26 | 4363 × 2708 × 3436 | 9000 |
| HRB-ZW2100 | 210 | 8065 | 146.5 | DN200 | 30 | 4600 × 2900 × 3500 | 11000 |
HRB-ZA — air cooled, −40 °C
| Model | Nm³/min | scfm | Rated power kW | Air connection | L × W × H mm | kg |
|---|
| HRB-ZA100 | 13.5 | 518 | 12.6 | DN65 | 1918 × 1070 × 2347 | 750 |
| HRB-ZA120 | 17 | 653 | 17.2 | DN65 | 2072 × 1270 × 2341 | 1050 |
| HRB-ZA150 | 21.5 | 826 | 20 | DN65 | 2094 × 1330 × 2467 | 1150 |
| HRB-ZA180 | 25 | 960 | 23.6 | DN80 | 2000 × 1180 × 2520 | 1500 |
| HRB-ZA200 | 28.5 | 1095 | 28.8 | DN80 | 2360 × 1340 × 2720 | 1800 |
| HRB-ZA250 | 32 | 1229 | 37.3 | DN80 | 2360 × 1480 × 2847 | 1950 |
| HRB-ZA300 | 37 | 1421 | 38.8 | DN100 | 2624 × 1743 × 2786 | 2200 |
| HRB-ZA400 | 45 | 1728 | 46.8 | DN100 | 2480 × 1750 × 2905 | 2550 |
| HRB-ZA450 | 50 | 1920 | 46.8 | DN100 | 2685 × 1750 × 2800 | 2890 |
| HRB-ZA500 | 55 | 2112 | 58.4 | DN125 | 3025 × 1950 × 3120 | 3150 |
| HRB-ZA600 | 65 | 2496 | 64.4 | DN150 | 3030 × 1950 × 2900 | 3500 |
| HRB-ZA700 | 75 | 2880 | 78.4 | DN125 | 3200 × 2160 × 3166 | 3900 |
| HRB-ZA800 | 85 | 3264 | 78.4 | DN125 | 3200 × 2160 × 3166 | 3950 |
No cooling water connection required.
HRB-ZA — air cooled, −20 °C
| Model | Nm³/min | scfm | Rated power kW | Air connection | L × W × H mm | kg |
|---|
| HRB-ZA100 | 13.5 | 518 | 12.6 | DN65 | 1918 × 1070 × 2347 | 750 |
| HRB-ZA120 | 17.5 | 672 | 17.2 | DN65 | 2072 × 1270 × 2541 | 1100 |
| HRB-ZA150 | 21.5 | 826 | 20 | DN65 | 2072 × 1270 × 2541 | 1150 |
| HRB-ZA180 | 25 | 960 | 20.3 | DN80 | 2356 × 1337 × 2728 | 1400 |
| HRB-ZA200 | 28.5 | 1095 | 23.6 | DN80 | 2360 × 1360 × 2520 | 1600 |
| HRB-ZA250 | 32 | 1229 | 28.8 | DN80 | 2120 × 1340 × 2714 | 1750 |
| HRB-ZA300 | 37 | 1421 | 37.3 | DN100 | 2300 × 1406 × 2807 | 1950 |
| HRB-ZA400 | 45 | 1728 | 37.3 | DN100 | 2426 × 1460 × 2870 | 2150 |
| HRB-ZA450 | 50 | 1920 | 37.3 | DN100 | 2426 × 1460 × 2870 | 2150 |
| HRB-ZA500 | 55 | 2112 | 58.4 | DN125 | 3030 × 1940 × 2930 | 2800 |
| HRB-ZA600 | 65 | 2496 | 58.4 | DN125 | 3025 × 1950 × 3120 | 3150 |
| HRB-ZA700 | 75 | 2880 | 58.4 | DN125 | 3030 × 1950 × 2900 | 3500 |
| HRB-ZA800 | 85 | 3264 | 64.4 | DN125 | 3130 × 2070 × 3146 | 3950 |
Heatless against zero purge at 100 Nm³/min
| At 100 Nm³/min | Heatless M NX | Zero purge HRB |
|---|
| Compressed air purged | ≈ 7 Nm³/min, continuously | None |
| Equivalent compressor power | ≈ 38 kW, continuous | 0 kW |
| Dryer electrical load | Controls only | Rated power, drawn intermittently |
| Who pays for it | The compressor, every hour | The dryer, only while regenerating |
| Net power at the meter | Higher on a large duty | Typically 30–50 % lower |
| Capital cost | Lowest | Higher — recovered from running hours |
